Wednesday 3rd December 2014 – I WAS RIGHT …

… yesterday when I talked about this snow.

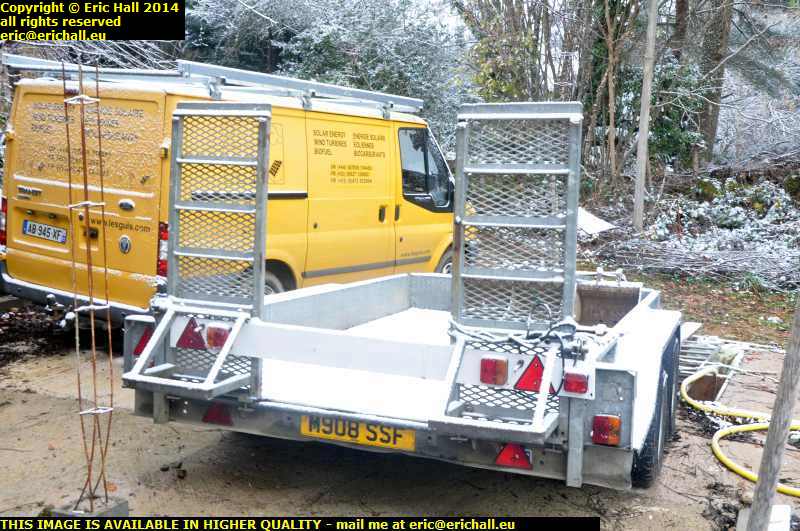

snow 2014 indespension plant trailer les guis virlet puy de dome franceThis morning there was about half an inch on the deck of the new Indespension trailer and other similar surfaces. There was also a layer on the leaves on the plants and so on, but it hadn’t stuck to the ground.

And as the day wore on, the snow gradually disappeared, washed away by the thin drizzle that fell throughout the day.

I’ve been working on the power board in the barn. I’ve found two melamine-covered chipboard planks that were part of an old cheap chest of drawers. They are 25cm wide and so, together, were about right for the 55cms that I need to cover the power board below where the charge controllers are. I’ve mounted them on 37mm laths so that they stand off the back part of the power board and the cables can pass behind.

I’ve invented a kind-of hinge set out of a couple of L-shaped joinery brackets, so that these smaller boards will drop down so that I can work on the cables behind if necessary, and the upper board is installed.

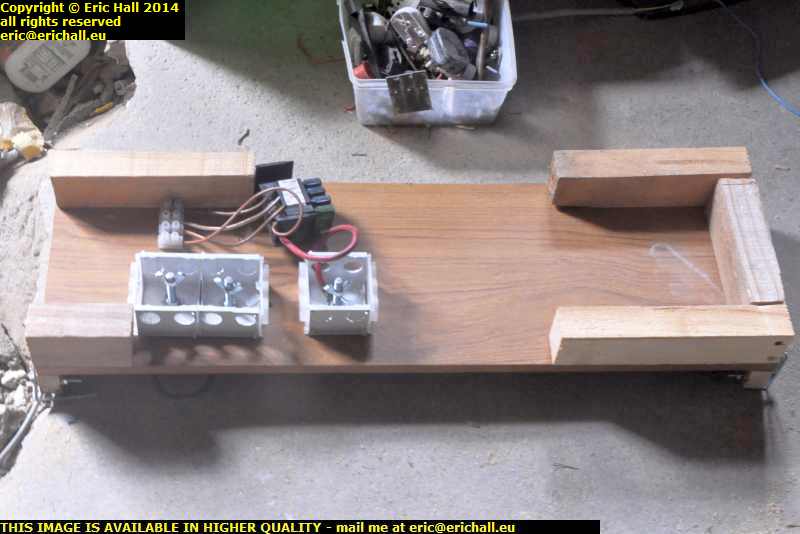

solar power renewable energy control board les guis virlet puy de dome franceAs for the lower board, that has the laths and the hinges, and I’ve also drilled 3x8mm holes in it. I then cut some 80mm lengths of 8mm threaded rod and passed them through the holes.

I’ve fitted some plastic pattresses front and back on each of the threaded rods. And if anyone wonders why it is that I have fitted the terminal connections within pattresses, then drop a spanner down the back of the power board with no pattresses and 660 amp-hours of batteries wired in, and see what happens.

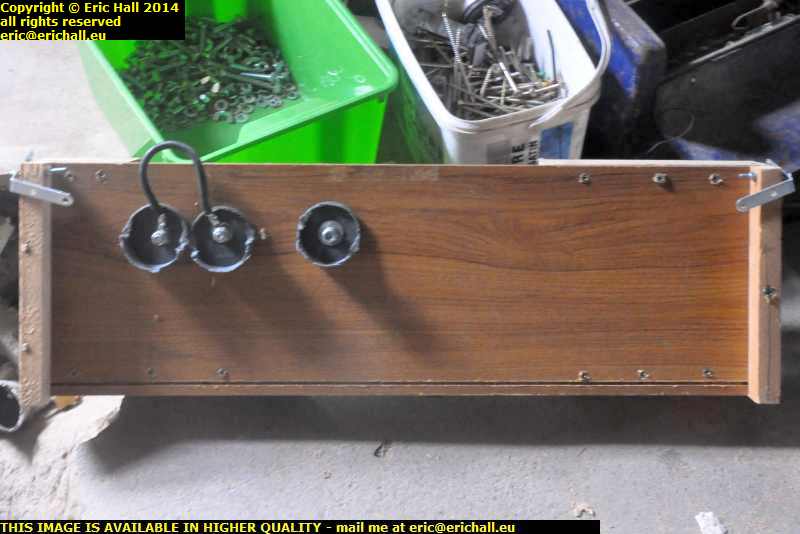

solar power renewable energy control board les guis virlet puy de dome franceI bolted the rods firmly in place so that there is 25mm of threaded rod out of the back and about 35mm out of the front. Attached to the rear of the threaded rods will be connections for all of the electrical equipment that will be permanently in place, and in the front will be the more temporary types of electrical equipment.

Two of the lengths of threaded rod have been connected together with a negative battery cable, as I’ve found in the past that I need about twice as many negative connections than positive connections.

And why is this?

That’s because there’s a fuse box off a Vauxhall Astra wired into the positive circuit. I like these because they are easy to take off scrap cars, and have one thick lead in, four of the giant fuses, and four wires out. I have four 12-volt electrical circuits – an upstairs lights and upstairs power, and a downstairs light and downstairs power. These circuits feed off the fuse box of course, but each one needs to have the negative circuit connected to the power board individually.

So that’s as far as I have reached today. Tomorrow I’m out, and so I’ll crack on with the power board on Friday.

-2

Sunday 23rd August 2009 – IT DOESN’T LOOK …

solar energy control panel les guis virlet puy de dome france… as if I’ve done very much today.

There are two circuit breakers now on the control panel. They are at the bottom right and are for the two solar arrays.

On the bottom of the board to the left of centre is the fuse box out of a late 1990s Vauxhall Astra. They are one of the reasons why I visit scrapyards in the UK so often. They have one heavy cable in and 8 maxi fuses (up to 100 amp) and 8 wires out – just the job for the 12-volt circuits I’ll be having in the house.

There’s also some of the wiring installed, and you can also see the insulation and 6 of the batteries already in what will be the battery box.

Mind you, don’t forget that it’s Sunday today so I don’t set the alarm – sleep till I wake up and so on. So at 06:55, a time that doesn’t normally exist on a Sunday morning except when I haven’t been to bed yet, I was wide away and at 07:30 I was up and about.

Another glorious sunny day was promised so I did a load of washing in the little tabletop washer that I bought for 10 Euros last year at the Virlet brocante. And I’ve had my moneysworth out of that. And while the washing was on the go I steamcleaned the verandah and I can actually get to the chemical toilet without falling over something and breaking my neck … "shame" – ed.

Following that it was lunch and then the obligatory visit to Claude’s to fix the trailerboard that Pascal can’t get working after he’s fixed it once.

This afternoon was the battery box followed by a big blazing fire in the grate in the living room to
1) aerate and dry out the house
2) get rid of a week’s accumulation of rubbish
3) cook my baked potatoes for tea.
And there’s definitely something about my own spuds. Shop-bought ones will bake easily in a hot open fire yet those I grow myself won’t cook. It shows you how rotten shop-bought spuds are, and how fresh mine are.

And we’re told that we’ll be having a storm tomorrow afternoon. I can try out my sump idea to see if it helps keep the rainwater clean. But if it’s anything like last week’s storm we’ll have 10 drops of rain and that will be that.

And today’s solar energy in the house? A mere 129.0 amp-hours.
